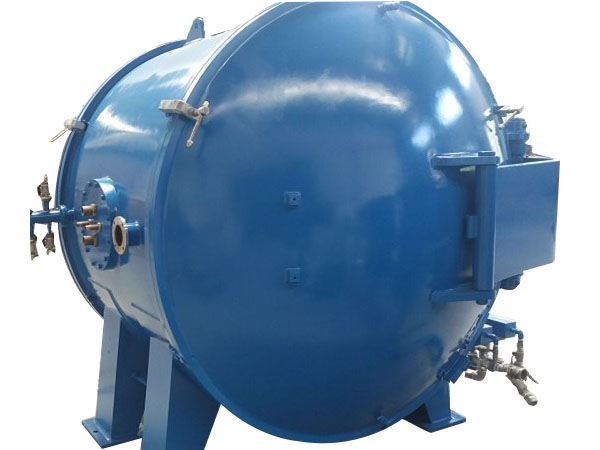

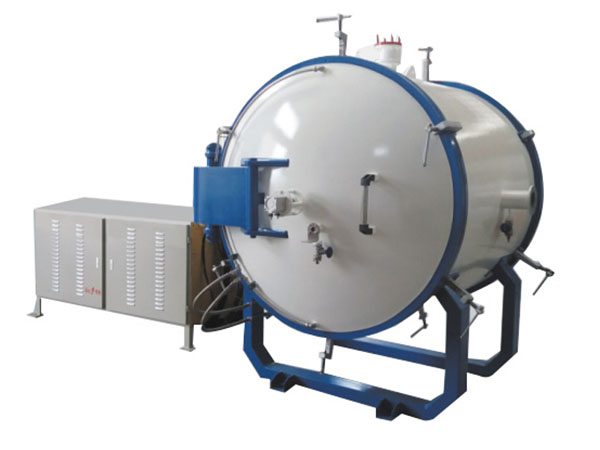

applicable in high temperature graphitization treatment of thermal conductive material graphite film,new materials,carbon and carbon materials,special ceramics industry.
|
model parameter |
lab usage |
production usage |
||||||||||
|
nti-sml-54w |
nti-sml-98w |
nti-sml-182w |
nti-sml-400w |
nti-sml-576w |
nti-sml-1280w |
|||||||
|
working size |
mm |
300×300×600 |
350×350×800 |
450×450×900 |
500×500×1600 |
600×600×1600 |
800×800×2000 |
|||||
|
heating type |
/ |
if induction heating |
||||||||||
|
control type |
/ |
thyristor control or igbt control ( optional ) |
||||||||||
|
ht zone capacity |
l |
54 |
98 |
182 |
400 |
576 |
1280 |
|||||
|
loading weight |
g |
ht zone capacity × density (g/cm³)×1000 remark：1l=1000cm³ |
||||||||||
|
ultimate vacuum |
pa |
20 |
||||||||||
|
if power |
kw |
150 |
200 |
250 |
400 |
500 |
700 |
|||||
|
max. working temperature |
℃ |
3000 |
3000 |
3000 |
2900 |
2900 |
2900 |
|||||
|
usual working temperature |
℃ |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 |
|||||
|
temperature unifomity |
℃ |
±10 |
±10 |
±10 |
±10 |
±15 |
±15 |
|||||
|
working environment |
/ |
vacuum or argon atmosphere protection( micro positive pressure) |
||||||||||
|
overall dimension |
mm |
|
|
|
|
|
|
|||||
|
weight |
kg |
|
|
|
|
|
|
|||||
you can customize it as per your real requirement.
